Kubernetes

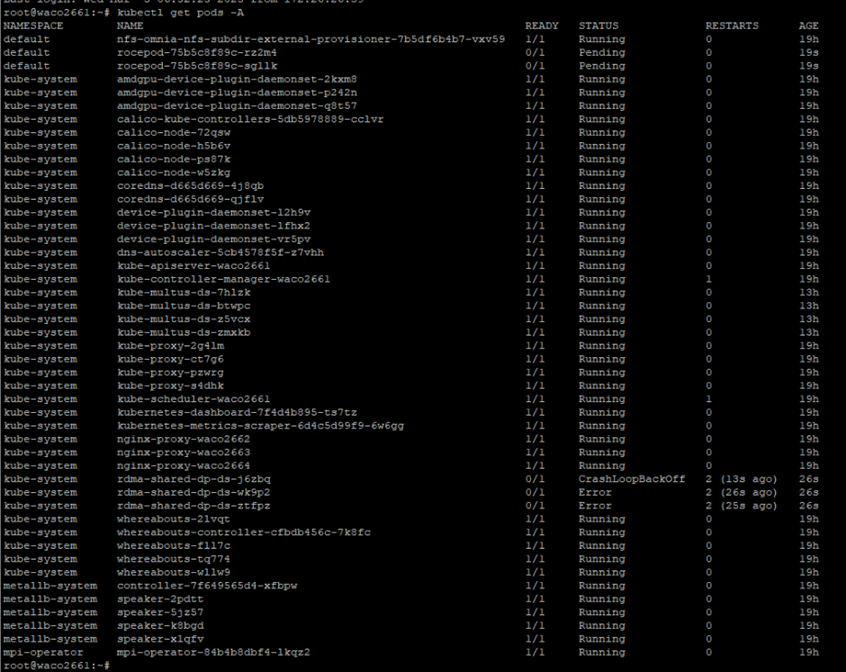

⦾ After successfully executing the deploy_roce_plugin.yml playbook on the kube_control_plane node, the RDMA pods goes to a CrashLoopBackOff state and the RoCE pods will be in pending state.

../../../_images/roce_error.png

Resolution: To resolve this issue, perform the following steps:

  1. First you need to open and edit the RDMA daemonset. To do so, use the following command:

    kubectl edit ds rdma-shared-dp-ds -n kube-system

  2. Add the following mountPath under the volumeMounts section:

    - name: pci-ids
  mountPath: /usr/share/misc/pci.ids
  readOnly: true

  3. Finally, add the following under volumes section:

    - name: pci-ids
  hostPath:
    path: /usr/share/misc/pci.ids
    type: File

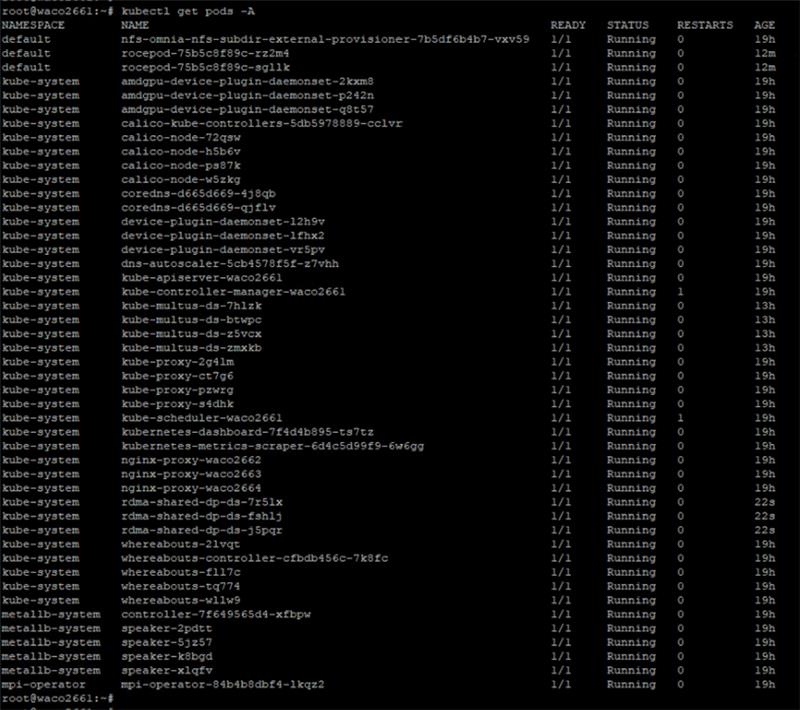

  4. After this the RDMA and RoCE pods will come to running state as shown in the below screenshot.

../../../_images/roce_error_fixed.png
