BeeGFS bolt on

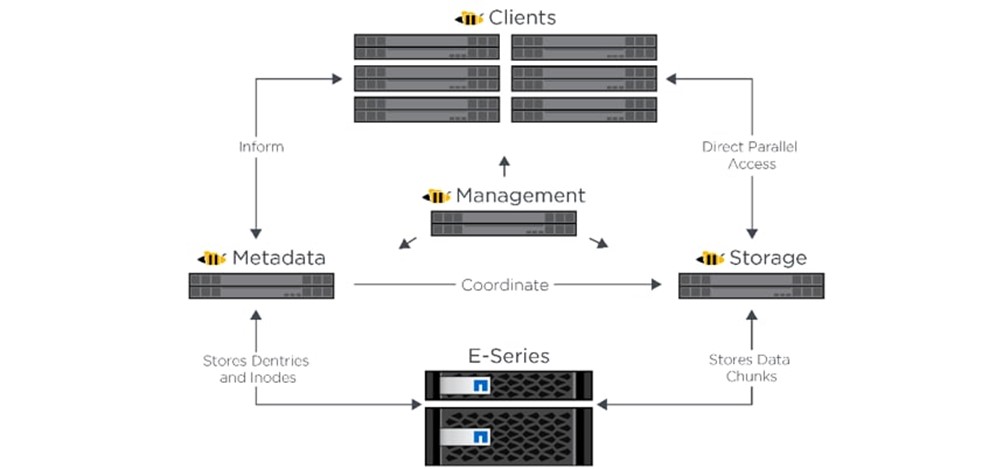

BeeGFS is a hardware-independent POSIX parallel file system (a.k.a. Software-defined Parallel Storage) developed with a strong focus on performance and designed for ease of use, simple installation, and management.

../../../../../_images/BeeGFS_Structure.jpg

Pre Requisites before installing BeeGFS client

  • Ensure that the BeeGFS server is set up using the linked steps.

  • Ensure that a connAuthFile is configured on the server as explained here

Caution

Configuring a connAuthFile is now mandatory. Services will no longer start if a connAuthFile is not configured

  • Ensure that the following ports are open for TCP and UDP connectivity:

    Port

    Service

    8008

    Management service (beegfs-mgmtd)

    8003

    Storage service (beegfs-storage)

    8004

    Client service (beegfs-client)

    8005

    Metadata service (beegfs-meta)

    8006

    Helper service (beegfs-helperd)

To open the ports required, use the following steps:

  1. firewall-cmd --permanent --zone=public --add-port=<port number>/tcp

  2. firewall-cmd --permanent --zone=public --add-port=<port number>/udp

  3. firewall-cmd --reload

  4. systemctl status firewalld

Note

BeeGFS services over RDMA is only supported on RHEL 8.3 and above due to limitations on BeeGFS. When setting up your cluster with RDMA support, check the BeeGFS documentation to provide appropriate values in input/storage_config.yml.

Installing the BeeGFS client via Omnia

After the required parameters are filled in input/storage_config.yml, Omnia installs BeeGFS on all nodes while executing the storage.yml playbook.

Caution

Do not remove or comment any lines in the input/storage_config.yml file.

Note

  • BeeGFS client-server communication can take place over TCP or RDMA. If RDMA support is required, set beegfs_rdma_support should be set to true. Also, OFED should be installed on all cluster nodes.

  • For BeeGFS communication happening over RDMA, the beegfs_mgmt_server should be provided with the Infiniband IP of the management server.

  • The parameter inventory refers to the inventory file listing all relevant nodes.

If input/storage_config.yml is populated before running omnia.yml, BeeGFS client will be set up during the execution of omnia.yml.

If omnia.yml is not leveraged to set up BeeGFS, execute the storage.yml playbook :

cd storage
ansible-playbook storage.yml -i inventory

Note

To run the storage.yml playbook independently from the omnia.yml playbook on Intel Gaudi nodes, start by executing the performance_profile.yml playbook. Once that’s done, you can run the storage.yml playbook separately.
