Before you run the provision tool

• (Recommended) Run prereq.sh to get the system ready to deploy Omnia.

• All target bare-metal servers (cluster nodes) should be reachable to the chosen OIM.

• The UEFI boot setting should be configured in the BIOS settings before initiating PXE boot on the nodes.

• Admin and BMC network switches should be configured before running the provision tool. For more information on configuring the switches, click here.

• Set the IP address of the OIM. The OIM NIC connected to remote servers (through the switch) should be configured with two IPs (BMC IP and admin IP) in a shared LOM or hybrid set up. In the case dedicated network topology, a single IP (admin IP) is required.

OIM NIC IP configuration in a LOM setup

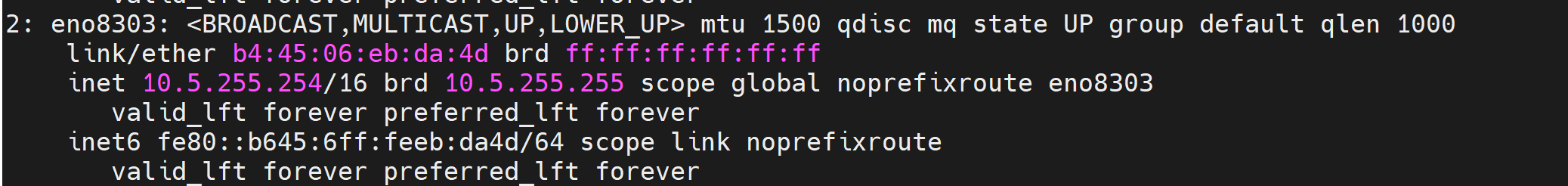

OIM NIC IP configuration in a dedicated setup

• Set the hostname of the OIM in the hostname. domain name format.

  • The hostname should not contain the following characters: , (comma), . (period) or _ (underscore). However, the domain name is allowed with commas and periods.

  • The hostname cannot start or end with a hyphen (-).

  • No upper case characters are allowed in the hostname.

  • The hostname cannot start with a number.

  • The hostname and the domain name (that is: hostname00000x.domain.xxx) cumulatively cannot exceed 64 characters. For example, if the node_name provided in input/provision_config.yml is ‘node’, and the domain_name provided is ‘omnia.test’, Omnia will set the hostname of a target cluster node to ‘node000001.omnia.test’. Omnia appends 6 digits to the hostname to individually name each target node.

  For example, controlplane.omnia.test is acceptable.

  hostnamectl set-hostname controlplane.omnia.test


Note

The domain name specified for the OIM should be the same as the one specified under domain_name in input/provision_config.yml.

• To provision the bare metal servers, download one of the following ISOs to the OIM:

  • RHEL 8.x

  • Rocky Linux 8.x

Note

Ensure the ISO provided has downloaded seamlessly (No corruption). Verify the SHA checksum/ download size of the ISO file before provisioning to avoid future failures.

Note the compatibility between cluster OS and OIM OS below:

OIM OS	Cluster Node OS	Compatibility
RHEL [1]	RHEL	Yes
Rocky	Rocky	Yes

[1]

Ensure that OIMs running RHEL have an active subscription or are configured to access local repositories. The following repositories should be enabled on the OIM: AppStream, BaseOS.

• Ensure that all connection names under the network manager match their corresponding device names.

  To verify network connection names:

  nmcli connection


  To verify the device name:

  ip link show


In the event of a mismatch, edit the file /etc/sysconfig/network-scripts/ifcfg-<nic name> using the vi editor for RHEL/Rocky Linux clusters.

• When discovering nodes via a mapping file, all target nodes should be set up in PXE mode before running the playbook.

Note

• After configuration and installation of the cluster, changing the OIM is not supported. If you need to change the OIM, you must redeploy the entire cluster.

• For servers with an existing OS being discovered via BMC, ensure that the first PXE device on target nodes should be the designated active NIC for PXE booting.
