Before you run the provision tool

  • (Recommended) Run prereq.sh to get the system ready to deploy Omnia.

  • All target bare-metal servers (cluster nodes) should be reachable from the chosen OIM.

  • The UEFI boot setting should be configured in the BIOS settings before initiating PXE boot on the nodes.

  • Admin and BMC network switches should be configured before running the provision tool. For more information on configuring the switches, click here.

  • Set the IP address of the OIM. The OIM NIC connected to remote servers (through the switch) should be configured with two IPs (BMC IP and admin IP) in a shared LOM or hybrid setup. In the case of a dedicated setup, a single IP (admin IP) is required.

../../../_images/ControlPlaneNic.png

OIM NIC IP configuration in a LOM or Hybrid setup

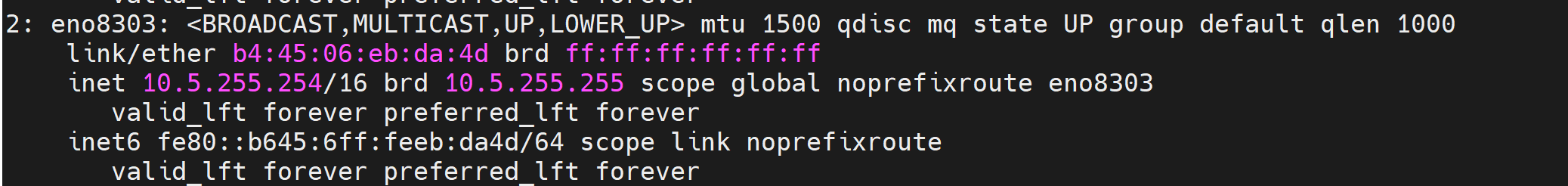

../../../_images/ControlPlane_DedicatedNIC.png

OIM NIC IP configuration in a dedicated setup

  • Set the hostname of the OIM in the <hostname>.<domain_name> format.

    • The hostname should not contain the following characters: , (comma), . (period) or _ (underscore). However, the domain name is allowed with commas and periods.

    • The hostname cannot start or end with a hyphen (-).

    • Ensure that the domain name is valid and acceptable within your organization’s network.

    • No upper case characters are allowed in the hostname.

    • The hostname cannot start with a number.

    • The hostname and the domain name (that is: hostname00000x.domain.xxx) cumulatively cannot exceed 64 characters. For example, if the node_name provided in input/provision_config.yml is ‘node’, and the domain_name provided is ‘omnia.test’, Omnia will set the hostname of a target cluster node to ‘node000001.omnia.test’. Omnia appends 6 digits to the hostname to individually name each target node.

    For example, controlplane.omnia.test is acceptable.

    hostnamectl set-hostname controlplane.omnia.test

Note

The domain name specified for the OIM should be the same as the one specified under domain_name in input/provision_config.yml.

Note

Ensure the ISO provided has downloaded seamlessly (not corrupted). Verify the SHA checksum/ download size of the ISO file before provisioning to avoid future failures.

Note the compatibility between cluster OS and OIM OS below:

OIM OS

Cluster Node OS

Compatibility

Ubuntu

Ubuntu

Yes

  • Ensure that all connection names under the network manager match their corresponding device names.

    To verify network connection names:

    nmcli connection

    To verify the device name:

    ip link show

In the event of a mismatch, edit the file /etc/netplan/00-installer-config.yaml using the vi editor for Ubuntu clusters.

  • When discovering nodes via a mapping file, all target nodes should be set up in PXE mode before running the playbook.

Note

  • After configuration and provisioning of the cluster, changing the OIM server is not supported. If you need to change the OIM, you must redeploy the entire cluster.

  • For servers with an existing OS being discovered via BMC, ensure that the first PXE device on target nodes should be the designated active NIC for PXE booting.
