OIM logs

Caution

It is not recommended to delete the below log files or the directories they reside in.

Note

  • Log files are rotated periodically as a storage consideration. To customize how often logs are rotated, edit the /etc/logrotate.conf file on the node.

  • If you want log files for specific playbook execution, ensure to use the cd command to move into the specific directory before executing the playbook. For example, if you want local repo logs, ensure to enter cd local_repo before executing the playbook. If the directory is not changed, all the playbook execution log files will be consolidated and provided as part of omnia logs located in /var/log/omnia.log.

Loki logs

Almost all log files can be viewed using the Dashboard tab ( Dashboard ) on the Grafana UI. Below is a list of all logs available to Loki and can be accessed from the dashboard:

Loki log files

Name

Location

Purpose

Additional Information

Omnia Logs

/var/log/omnia.log

Omnia Log

This log is configured by Default. This log can be used to track all changes made by all playbooks in the omnia directory.

Note

User can view the combined logs for discovery_provision.yml and omnia.yml execution in omnia.log file.

Accelerator Logs

/var/log/omnia/accelerator.log

Accelerator Log

This log is configured by Default.

kubespray_telemetry Logs

/var/log/omnia/kubespray_omnia.log

Kubespray Telemetry Log

This log is configured by Default.

Network Logs

/var/log/omnia/network.log

Network Log

This log is configured by Default.

Platform Logs

/var/log/omnia/platforms.log

Platform Log

This log is configured by Default.

Provision Logs

/var/log/omnia/provision.log

Provision Log

This log is configured by Default.

Scheduler Logs

/var/log/omnia/scheduler.log

Scheduler Log

This log is configured by Default.

Security Logs

/var/log/omnia/security.log

Security Log

This log is configured by Default.

Storage Logs

/var/log/omnia/storage.log

Storage Log

This log is configured by Default.

Telemetry Logs

/var/log/omnia/telemetry.log

Telemetry Log

This log is configured by Default.

Utils Logs

/var/log/omnia/utils.log

Utils Log

This log is configured by Default.

Cluster Utilities Logs

/var/log/omnia/utils_cluster.log

Cluster Utils Log

This log is configured by Default.

syslogs

/var/log/messages

System Logging

This log is configured by Default.

Audit Logs

/var/log/audit/audit.log

All Login Attempts

This log is configured by Default.

CRON logs

/var/log/cron

CRON Job Logging

This log is configured by Default.

Pods logs

/var/log/pods/ * / * / * log

k8s pods

This log is configured by Default.

Access Logs

/var/log/dirsrv/slapd-<Realm Name>/access

Directory Server Utilization

This log is available when FreeIPA or 389ds is set up ( ie when enable_security_support is set to ‘true’).

Error Log

/var/log/dirsrv/slapd-<Realm Name>/errors

Directory Server Errors

This log is available when FreeIPA or 389ds is set up ( ie when enable_security_support is set to ‘true’).

CA Transaction Log

/var/log/pki/pki-tomcat/ca/transactions

FreeIPA PKI Transactions

This log is available when FreeIPA or 389ds is set up ( ie when enable_security_support is set to ‘true’).

KRB5KDC

/var/log/krb5kdc.log

KDC Utilization

This log is available when FreeIPA or 389ds is set up ( ie when enable_security_support is set to ‘true’).

Secure logs

/var/log/secure

Login Error Codes

This log is available when FreeIPA or 389ds is set up ( ie when enable_security_support is set to ‘true’).

HTTPD logs

/var/log/httpd/ *

FreeIPA API Calls

This log is available when FreeIPA or 389ds is set up ( ie when enable_security_support is set to ‘true’).

DNF logs

/var/log/dnf.log

Installation Logs

This log is configured on Rocky OS.

BeeGFS Logs

/var/log/beegfs-client.log

BeeGFS Logs

This log is configured on BeeGFS client nodes.

Compute Logs

/var/log/xcat/computes.log

Logs system messages from all cluster nodes.

This log is configured by Default.

Cluster deployment logs

/var/log/xcat/cluster.log

Logs deployment messages from all cluster nodes.

This log is configured by Default.

Server Network Logs

/var/log/omnia/server_spec_update.log

Server network log

This log is configured by Default.

Local Repository Logs

/var/log/omnia/local_repo.log

Local repository log

This log is configured by Default.

Discovery Logs

/var/log/omnia/discovery.log

Discovery log

This log is configured by Default.

Prepare OIM Logs

/var/log/omnia/prepare_oim.log

Preparing OIM log

This log is configured by Default.

Tools Logs

/var/log/omnia/tools.log

Tools log

This log is configured by Default.

Upgrade Logs

/var/log/omnia/upgrade.log

Upgrade log

This log is configured by Default.

IP Rule Assignment Logs

/var/log/omnia/ip_rule_assignment.log

IP rule assignment log

This log is configured by Default.

Software Update Logs

/var/log/omnia/software_update.log

Software update log

This log is configured by Default.

Performance Profile Logs

/var/log/omnia/performance_profile.log

Peformance profile log

This log is configured by Default.

Benchmark Logs

/var/log/omnia/benchmarks.log

Benchmark messages log

This log is configured by Default.

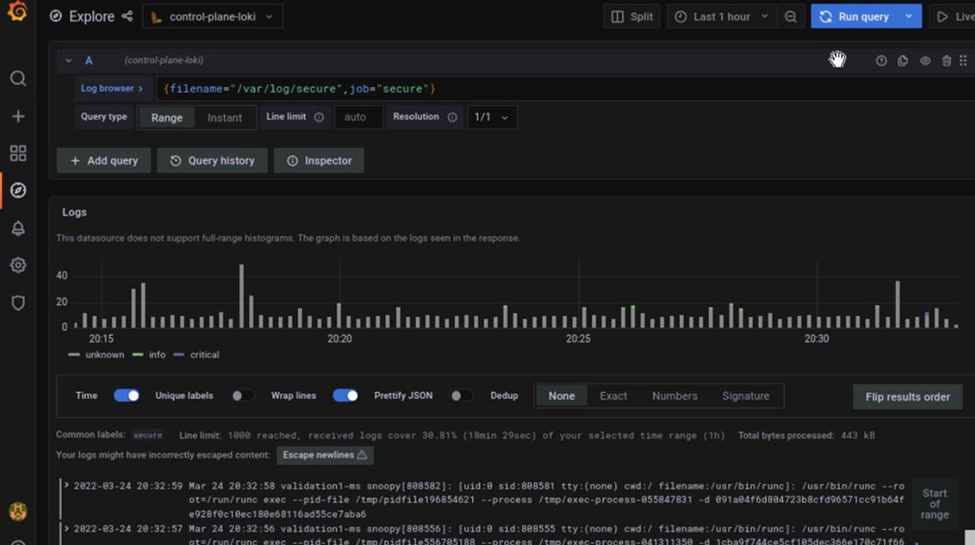

../_images/Grafana_Loki_TG.png

Logs of individual containers

  1. A list of namespaces and their corresponding pods can be obtained using: kubectl get pods -A

  2. Get a list of containers for the pod in question using: kubectl get pods <pod_name> -o jsonpath='{.spec.containers[*].name}'

  3. Once you have the namespace, pod and container names, run the below command to get the required logs: kubectl logs pod <pod_name> -n <namespace> -c <container_name>

Provisioning logs

Logs pertaining to actions taken during discovery_provision.yml can be viewed in /var/log/xcat/cluster.log and /var/log/xcat/computes.log on the OIM.

Note

As long as a node has been added to a cluster by Omnia, deployment events taking place on the node will be updated in /var/log/xcat/cluster.log.

Telemetry logs

Logs pertaining to actions taken by Omnia or iDRAC telemetry can be viewed in /var/log/messages. Each log entry is tagged “omnia_telemetry”. Log entries typically follow this format.

<Date time> <Node name> omnia_telemetry[<Process ID>]: <name of file>:<name of method throwing error>: <Error message>

Grafana Loki

After telemetry.yml is run, Grafana services are installed on the OIM.

  1. Get the Grafana IP using kubectl get svc -n grafana.

  2. Login to the Grafana UI by connecting to the cluster IP of grafana service via port 5000. That is http://xx.xx.xx.xx:5000/login.

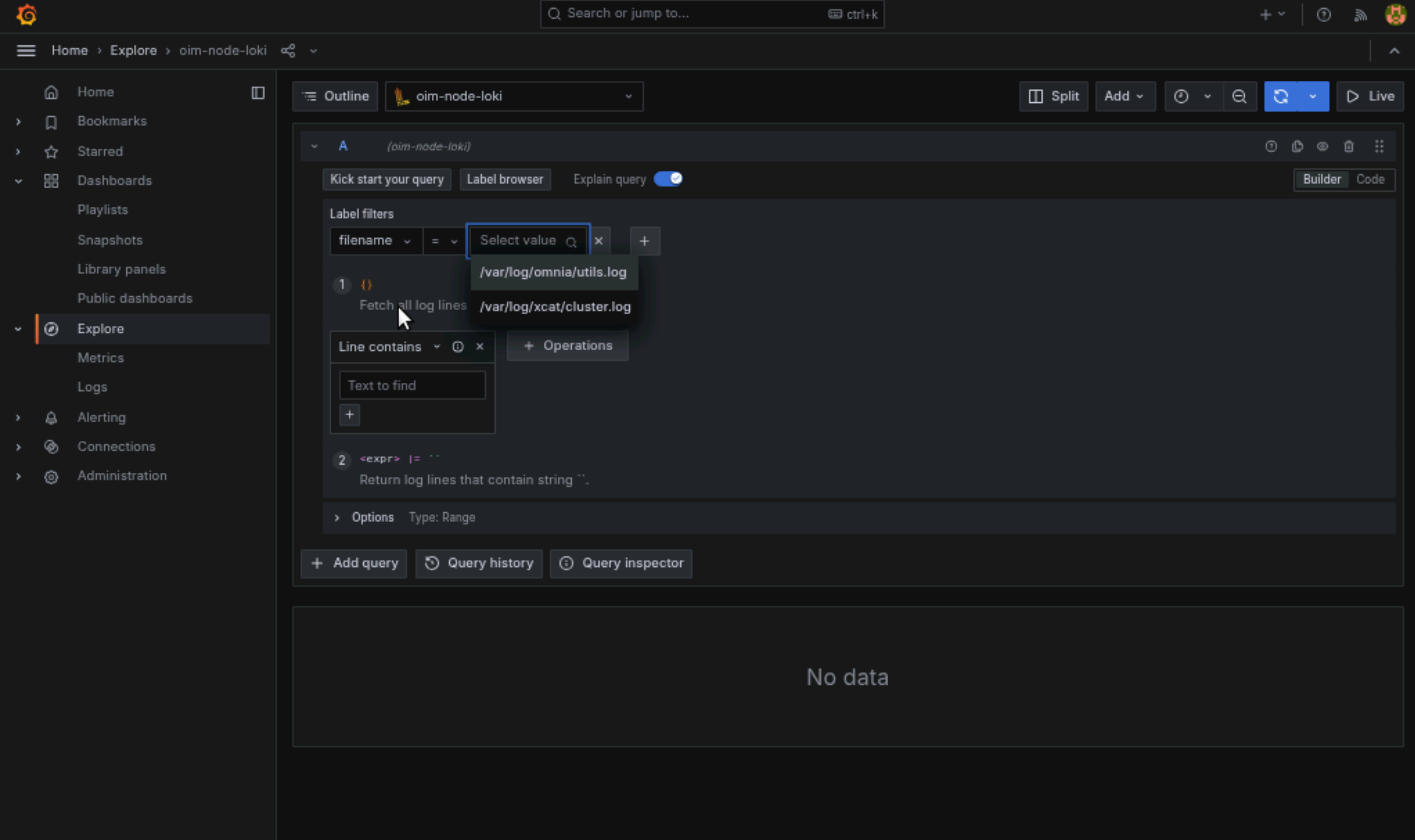

  3. In the Explore page, select oim-node-loki.

../_images/oim_grafana_loki.png

  1. The log browser allows users to filter logs by job, node, user, etc. Example

    (job= "cluster deployment logs") |= "nodename"
(job="compute log messages") |= "nodename" |="node_username"

Custom dashboards can be created as per your requirement.
